Editing Resource Attributes¶

The attribute editing dialog is accessed through the Edit Attributes button within the Resource Types tab of the template editing dialog.

When clicking this button, the attribute configuration dialog opens for the selected resource type.

Attributes Overview¶

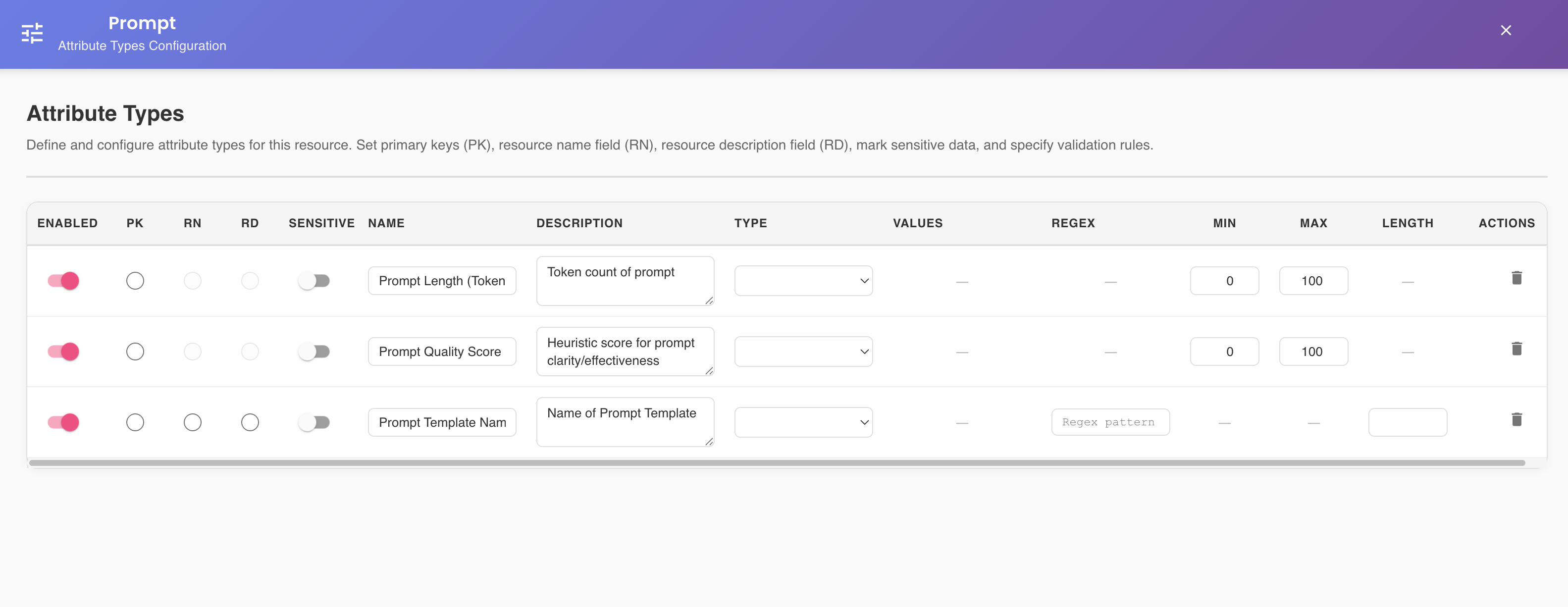

Once opened, a list of all attributes already defined for the resource type will appear.

Attribute Configuration¶

The attributes summary is organized as follows:

Enabled Toggle¶

Controls whether the attribute will be included in data collection by agents.

• Toggle ON: The attribute is captured and included in metrics collection
• Toggle OFF: The attribute is silenced and not captured by agents

Sensitive Toggle¶

Identifies when an attribute represents sensitive information that could compromise security if disclosed.

• Toggle ON: The attribute is marked as sensitive and will be obfuscated
• Toggle OFF: The attribute is treated as regular data

Obfuscation Behavior:

• String values are replaced with asterisks (e.g., john.doe@email.com becomes ****)
• Numeric values are masked (e.g., 4532-1234-5678-9010 becomes ****-****-****-9010)
• Only users with explicit permissions can view unobfuscated values

Attribute Name¶

The name of the attribute as it will appear in metrics and reports.

Attribute Description¶

A detailed description explaining the purpose and meaning of the attribute.

Attribute Type¶

Indicates the data type of the attribute. Available types include:

• STRING: Text-based values
• INTEGER: Positive or negative whole number values
• FLOAT: Floating-point decimal values
• BOOLEAN: Truth values (TRUE or FALSE)
• DATE: Date values
• TIMESTAMP: Date-time values capturing a point in time
• BINARY: Binary content
• JSON: The attribute contains a JSON document
• VARIANT: Reserved for attributes marked as PK (Primary Key). When an attribute is marked as PK, it automatically changes to type VARIANT
• ENUM: Enumerative type that can have multiple predefined values. Values are specified through the VALUES column and entered manually one by one

Type-Specific Configuration Columns¶

Depending on the attribute type selected, additional configuration columns will appear:

Numeric Types (INTEGER, FLOAT)¶

When selecting INTEGER or FLOAT types, the following columns appear:

• Minimum Value: Determines the minimum value that can be assigned to the attribute
• Maximum Value: Determines the maximum value that can be assigned to the attribute

ENUM Type¶

When selecting ENUM type, the following column appears:

• VALUES: Allows you to configure the multiple values that the attribute can have. Values are entered manually one by one.

STRING Type¶

When selecting STRING type, the following columns appear:

• REGEX: Specifies the regular expression pattern against which the value will be validated
• LENGTH: Specifies the maximum length of the string

Other Types¶

The remaining types (DATE, TIMESTAMP, BINARY, JSON, VARIANT) do not require additional configuration.

Attribute Metadata Radio Buttons¶

Each attribute has three radio buttons that control specific metadata properties: PK, RN, and RD. These buttons define how the attribute relates to the Application-Specific Business Object (ASBO) identity and representation.

PK (Primary Key)¶

When the PK radio button is selected for an attribute, it indicates that this attribute represents the primary key metadata of the ASBO, which uniquely identifies it.

RN (Resource Name)¶

When the RN radio button is selected for an attribute, it indicates that this attribute represents the name metadata of the ASBO, which serves to visually identify it from other instances.

RD (Resource Description)¶

When the RD radio button is selected for an attribute, it indicates that this attribute represents the description metadata of the ASBO, providing additional context about the object.

Radio Button Selection Rules¶

The following rules govern how these radio buttons can be set:

1. Primary Key Exclusivity: Only one attribute can have the PK mark, and no more than one
2. Name and Description Uniqueness: Only one attribute can have the RN mark and only one can have the RD mark, except for JSON type attributes (see below)
3. Mutual Exclusivity: An attribute cannot be mapped to PK and RN/RD simultaneously
4. JSON Special Case: When an attribute is of type JSON, it can be mapped to both RN and RD by selecting appropriate JSON fields, provided the resource has been imported from a datasource

JSON Attribute Mapping¶

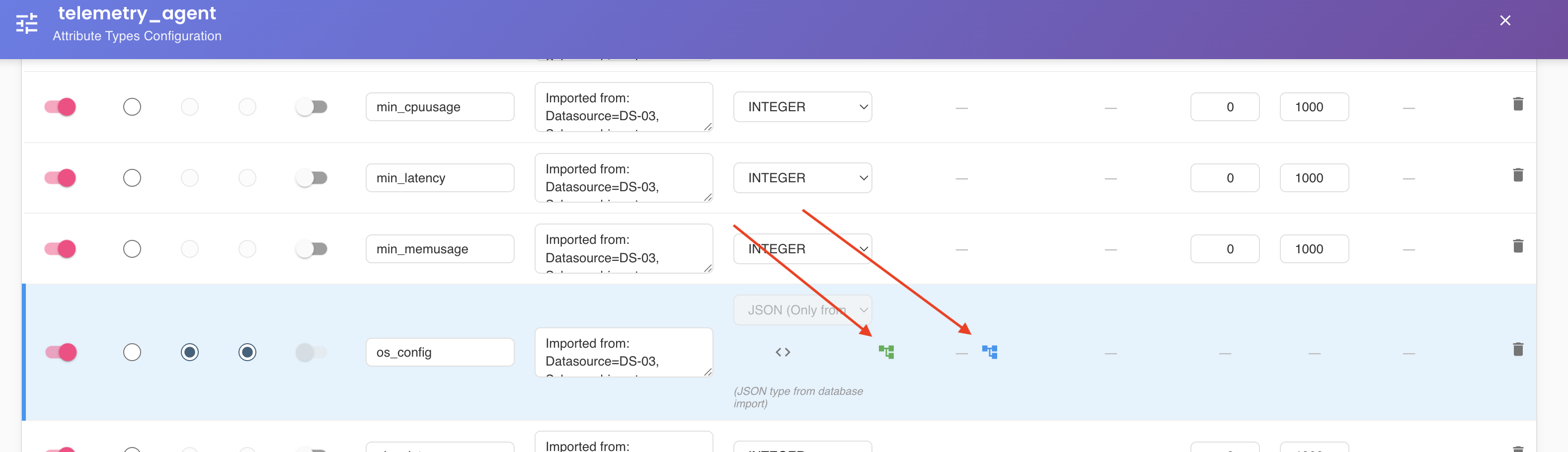

When a JSON-type attribute is selected for RN or RD mapping, two additional buttons become available that allow you to choose the associated JSON fields through a select-by-example approach:

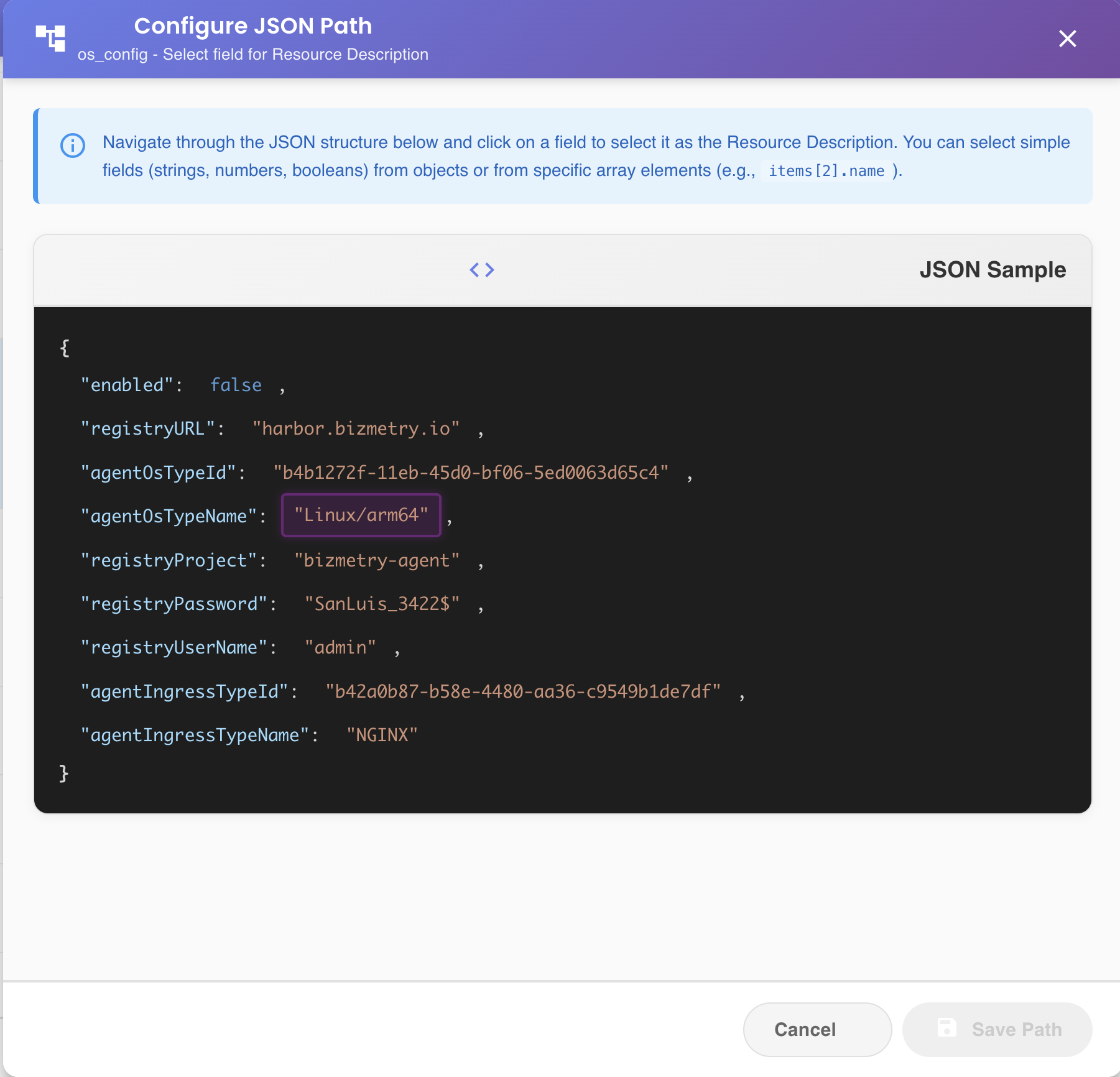

These buttons open a dialog where you can:

• View a sample JSON document from the datasource
• Select which JSON path corresponds to the resource name (RN)
• Select which JSON path corresponds to the resource description (RD)
• Validate the selection with real data examples

Resource Identifiers Propagation¶

When attributes are designated as PK (Primary Key), RN (Resource Name), or RD (Resource Description), they establish the foundational identity mapping for imported ASBO instances. Understanding how these mappings propagate and update is critical for maintaining data integrity across your BizMetry environment.

Initial Import and Identifier Anchoring¶

When resources are first imported from a datasource, BizMetry anchors each ASBO instance to its corresponding identifiers in the database based on the current PK, RN, and RD mappings:

• Primary Key Anchoring: The attribute marked as PK is used to extract the unique identifier from each database record
• Resource Name Anchoring: The attribute marked as RN is used to extract the business-meaningful name that will group instances across environments
• Resource Description Anchoring: The attribute marked as RD (if configured) is used to extract descriptive information about each instance

Example of Initial Anchoring:

Given a customer table with the following attributes marked: - PK → customer_id column - RN → company_name column - RD → description column

When imported, each database record is mapped as follows:

Identifier Remapping and Re-synchronization¶

After the initial import, you may need to change which attributes are designated as PK, RN, or RD. This could happen for several reasons:

• Business Logic Changes: The business decides to use a different field as the primary identifier
• Data Quality Improvements: A more stable or meaningful attribute is identified for resource naming
• Schema Evolution: Database schema changes require different mapping strategies
• Multi-Environment Alignment: Need to use different fields to properly group instances across environments

What Happens When You Change Identifier Mappings:

When you modify the PK, RN, or RD designation from one attribute to another and save the template configuration, BizMetry automatically triggers a re-synchronization process that:

1. Identifies All Affected Resources: Locates all imported resource instances of the modified ASBO type across all environments
2. Re-extracts Identifier Values: Queries the original datasource(s) to extract the new identifier values from the newly designated attributes
3. Updates Internal Mappings: Updates BizMetry's internal identifier mappings to reflect the new attribute associations
4. Preserves Cross-Environment Groupings: Ensures that instances representing the same business object across different environments remain properly grouped
5. Maintains Historical Data: Preserves all historical metrics and data while updating only the identifier mappings

Example Scenario:

Initial Configuration: - PK → internal_id - RN → customer_code - RD → notes

After 100 customer resources are imported from Development and Production environments

Configuration Change: - PK → customer_id (changed from internal_id) - RN → company_name (changed from customer_code) - RD → description (changed from notes)

Re-synchronization Process:

Step 1: Detect configuration change
  → PK mapping changed: internal_id → customer_id
  → RN mapping changed: customer_code → company_name
  → RD mapping changed: notes → description

Step 2: Identify affected resources
  → Found 100 customer instances across 2 environments

Step 3: Re-query datasources
  → Development DB: Extract new identifiers for 60 instances
  → Production DB: Extract new identifiers for 40 instances

Step 4: Update identifier mappings
  → Remap PKs using customer_id values
  → Remap RNs using company_name values
  → Remap RDs using description values

Step 5: Re-establish cross-environment groupings
  → Group instances with matching company_name values
  → Verify all instances properly associated

Step 6: Complete synchronization
  → All 100 instances successfully remapped

Best Practices for Identifier Mapping¶

To minimize the need for identifier remapping and ensure smooth operations:

Initial Planning: - Choose stable, meaningful attributes for PK, RN, and RD from the start - Prefer business keys over surrogate keys when possible - Select attributes that are unlikely to change over time - Ensure chosen attributes exist in all target environments

Data Quality: - Verify attribute uniqueness for PK selections - Ensure RN attributes provide meaningful, human-readable values - Check that all target attributes are properly indexed in source databases - Validate that JSON paths (if used) are correct and consistent

Testing Strategy: - Test identifier mappings with a small dataset first - Import a subset of data and verify correct grouping across environments - Validate that all identifier extractions produce expected values - Confirm that changes propagate correctly before full-scale import

Change Management: - Document the rationale for any identifier mapping changes - Maintain a change log of all PK, RN, and RD modifications - Establish approval processes for identifier remapping in production - Plan maintenance windows for large-scale re-synchronization operations

Actions Column¶

The Actions column contains the following action:

Delete Attribute (Trash Icon)¶

Allows you to delete an attribute through a two-step safety validation:

1. First click: Marks the attribute for deletion (button turns red with pulsing animation)
2. Second click: Confirms and deletes the attribute

Bottom Actions¶

At the bottom of the attributes dialog, the following buttons are available:

Sort by Sequence¶

Allows you to sort the attributes in ascending order by their sequence number. This is the default sorting behavior.

Add Attribute¶

Allows you to manually add a new attribute to the resource type. After clicking this button, a configuration dialog opens where you must provide:

• Attribute Name: Required field
• Attribute Description: Optional but recommended
• Attribute Type: Required field (select from available data types)
• Type-Specific Configuration: Depending on the selected type, additional fields may be required (MIN/MAX for numeric types, VALUES for ENUM, REGEX/LENGTH for STRING)

Once all required fields are completed, the attribute can be saved.

Global Dialog Actions¶

At the bottom right margin, two buttons are always visible across all tabs:

Save Changes¶

Saves all attribute changes introduced at any time. This button is visible across all template configuration tabs (Resource Types, Attributes, Client Types, and Domains), allowing you to save all changes made to the template globally.

Cancel¶

Discards all changes introduced to the attributes. When clicking Cancel, a confirmation dialog appears allowing you to:

• Confirm the cancellation and discard all changes
• Go back and continue editing

Best Practices¶

Naming Conventions¶

• Use clear, descriptive names that reflect the business meaning
• Follow consistent naming patterns across your organization
• Avoid abbreviations unless they are widely understood
• Use lowercase with underscores (snake_case) or camelCase consistently

Attribute Organization¶

• Keep the number of attributes manageable (typically 10-20 per resource type)
• Group related attributes logically
• Place the most important attributes first
• Remove unused or deprecated attributes to maintain clarity

Data Type Selection¶

• Choose the most specific data type possible for better data validation
• Use FLOAT for monetary values when precision is critical
• Use TIMESTAMP instead of DATE when time precision matters
• Consider using ENUM for fields with a fixed set of values
• Use JSON for complex, nested data structures

Validation and Constraints¶

• Always set MIN/MAX values for numeric types to prevent invalid data
• Define comprehensive ENUM value lists to ensure data consistency
• Use REGEX patterns for STRING types to enforce format requirements
• Set appropriate LENGTH limits for STRING types to optimize storage

Security and Privacy¶

• Mark all sensitive attributes with the Sensitive toggle
• Use the Enabled toggle to temporarily disable problematic attributes
• Regularly audit which attributes are marked as sensitive
• Document the reason for marking attributes as sensitive

Documentation¶

• Always provide meaningful descriptions for attributes
• Document the business purpose and expected values
• Include examples of valid values in the description
• Note any dependencies or relationships with other attributes

Common Use Cases¶

Financial Attributes¶

For invoice or payment resources:

• invoice_amount (FLOAT): Total invoice value with MIN: 0.00
• invoice_date (DATE): Date the invoice was issued
• payment_status (ENUM): Current payment status (PENDING, PAID, OVERDUE, CANCELLED)
• currency_code (STRING): ISO currency code with REGEX: ^[A-Z]{3}$ and LENGTH: 3

Operational Attributes¶

For work order or task resources:

• estimated_hours (FLOAT): Estimated completion time with MIN: 0.0, MAX: 1000.0
• actual_hours (FLOAT): Actual time spent with MIN: 0.0
• priority_level (INTEGER): Priority ranking with MIN: 1, MAX: 5
• completion_status (ENUM): Current status (NOT_STARTED, IN_PROGRESS, COMPLETED, BLOCKED)

Customer Attributes¶

For customer or account resources:

• customer_name (STRING): Full customer name with LENGTH: 200
• account_balance (FLOAT): Current account balance
• registration_date (DATE): Date of account creation
• is_active (BOOLEAN): Account active status
• customer_email (STRING, Sensitive): Email address with REGEX validation

JSON Attributes¶

For complex data structures:

• order_details (JSON): Complete order information including line items, shipping address, and payment details
• metadata (JSON): Additional flexible metadata that may vary by instance
