Editing a Business Event¶

This page walks through what happens when you edit an existing Business Event version — the two entry points into editing, what each one actually lets you change, which version states allow it, and what "saving" does depending on where the version started.

Two ways to edit¶

Both actions live on the version row in the Business Events tab (expand an event to see its versions):

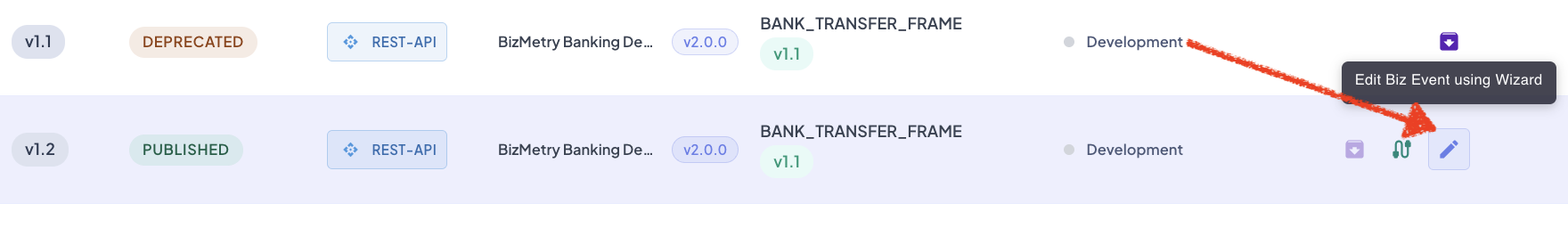

Flow 1 — Edit: the full wizard¶

Clicking Edit opens the Edit Business Event wizard. Unlike the Create wizard, which has 6 steps, editing only exposes 4:

%%{init: {"themeVariables": {"fontSize": "18px"}}}%%
flowchart TB
    A["1 · Target Frame"] --> B["2 · Select Operations"]
    B --> C["3 · Configure Operations"]
    C --> D["4 · Configure Mapping"]
    D --> E["Apply Changes"]

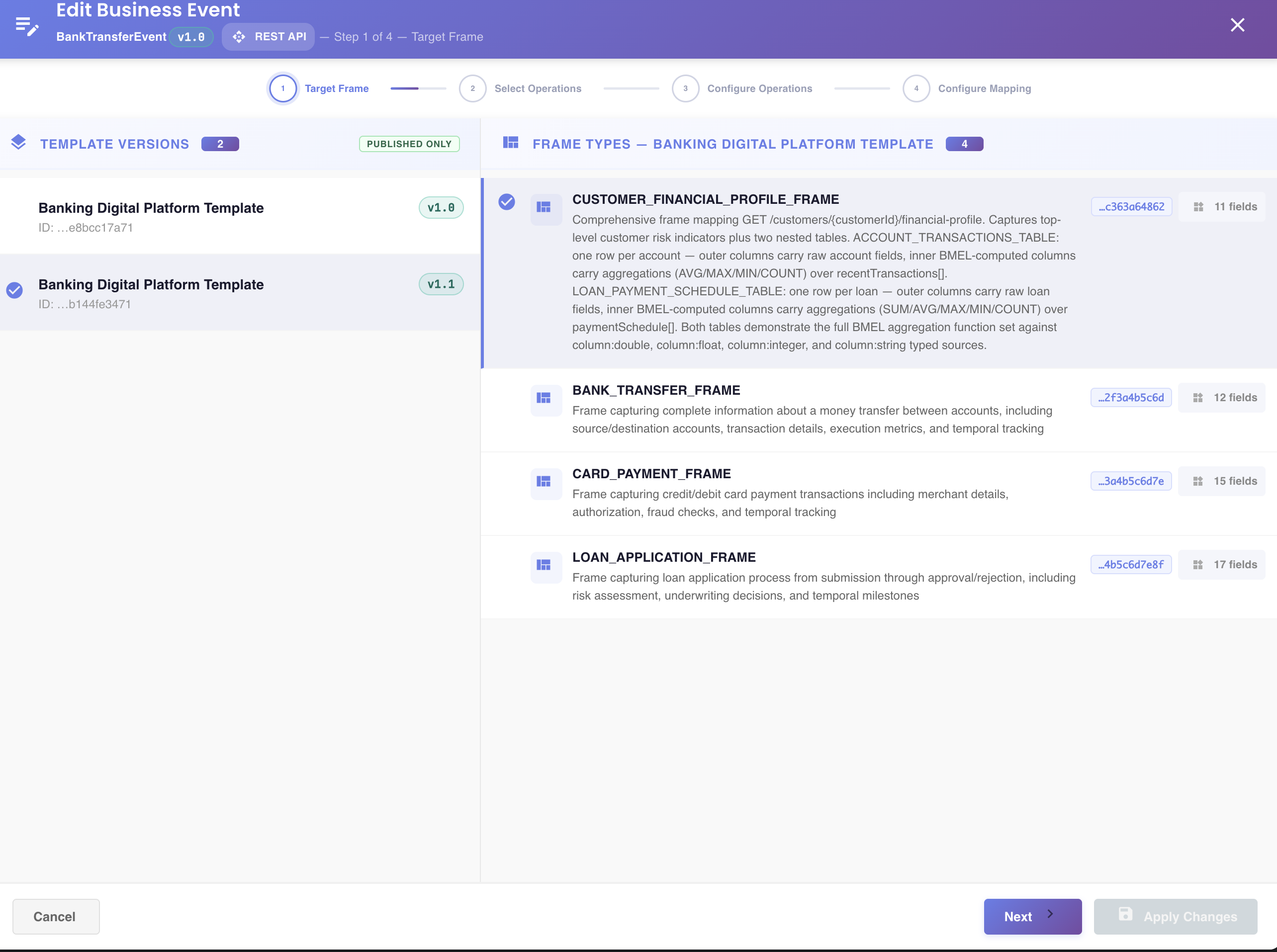

Step 1 — Target Frame¶

Pick a different Template version and/or Frame Type for this version to target. Only PUBLISHED Template versions are offered.

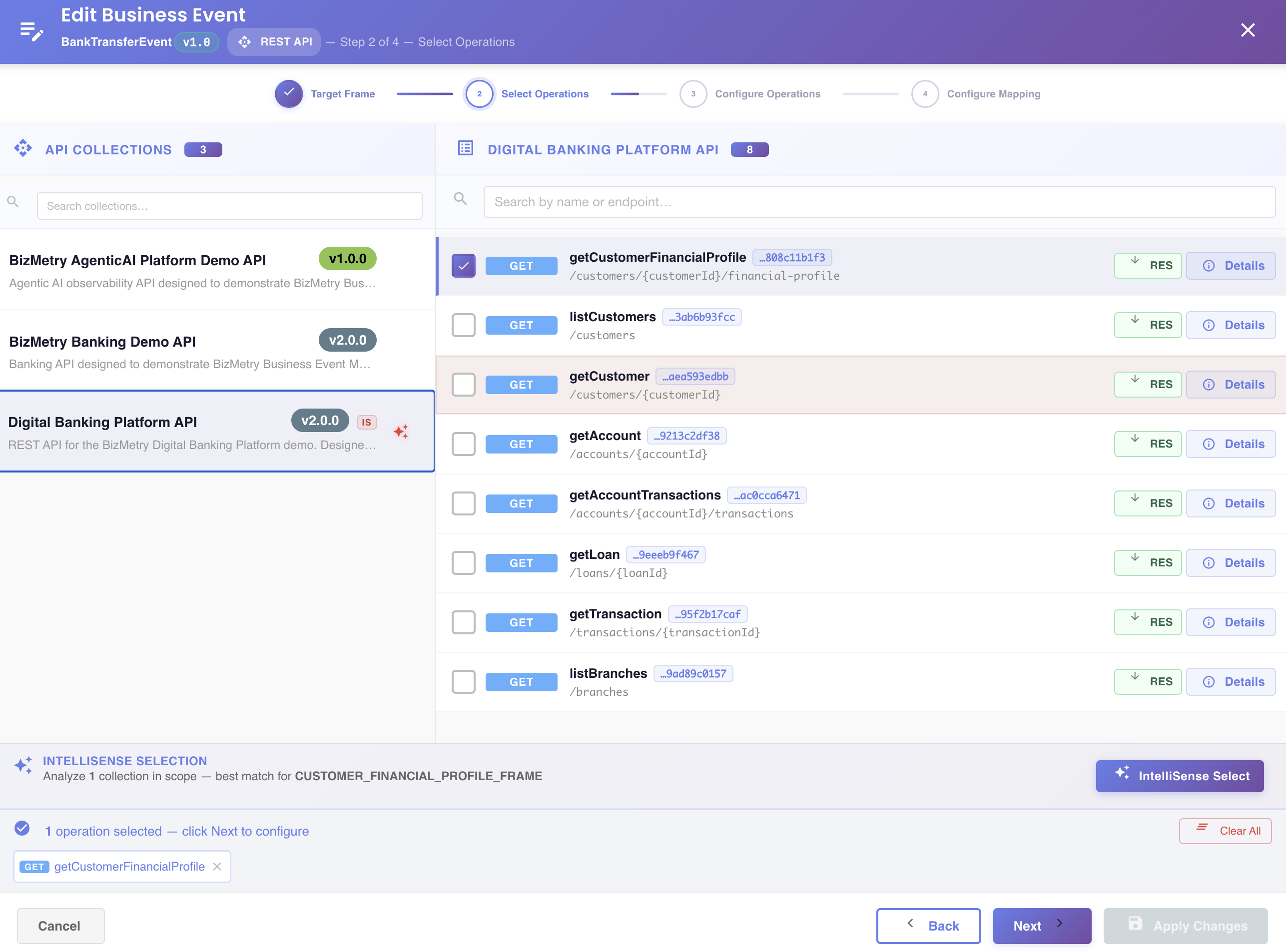

Step 2 — Select Operations¶

Change the API Collection and/or the specific operations this version intercepts — same picker, search, and IntelliSense-assisted selection as Step 4 of the create wizard.

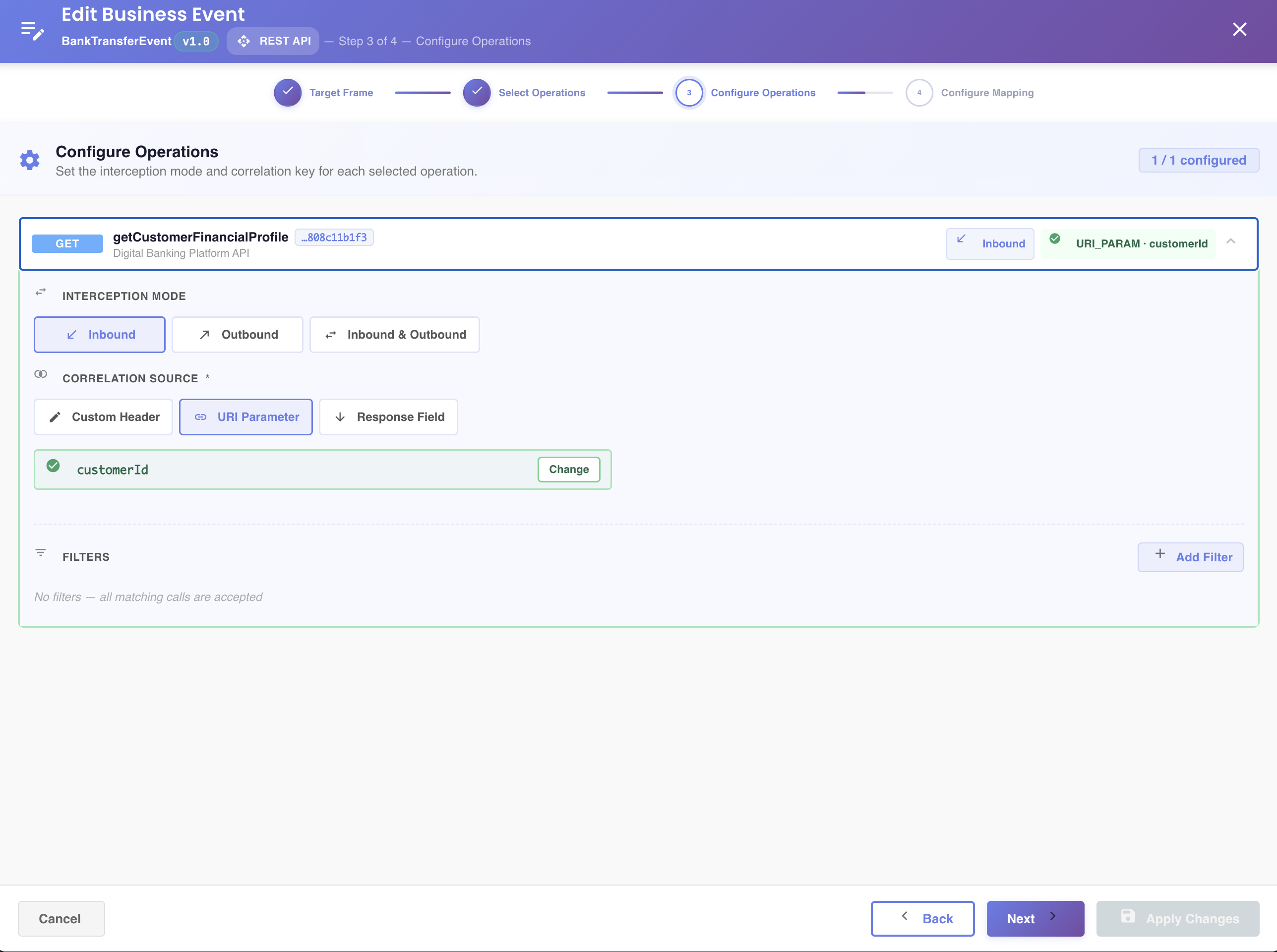

Step 3 — Configure Operations¶

Adjust interception mode (Inbound/Outbound/Inbound & Outbound), correlation source, and filters for each selected operation — same as Step 5 of the create wizard.

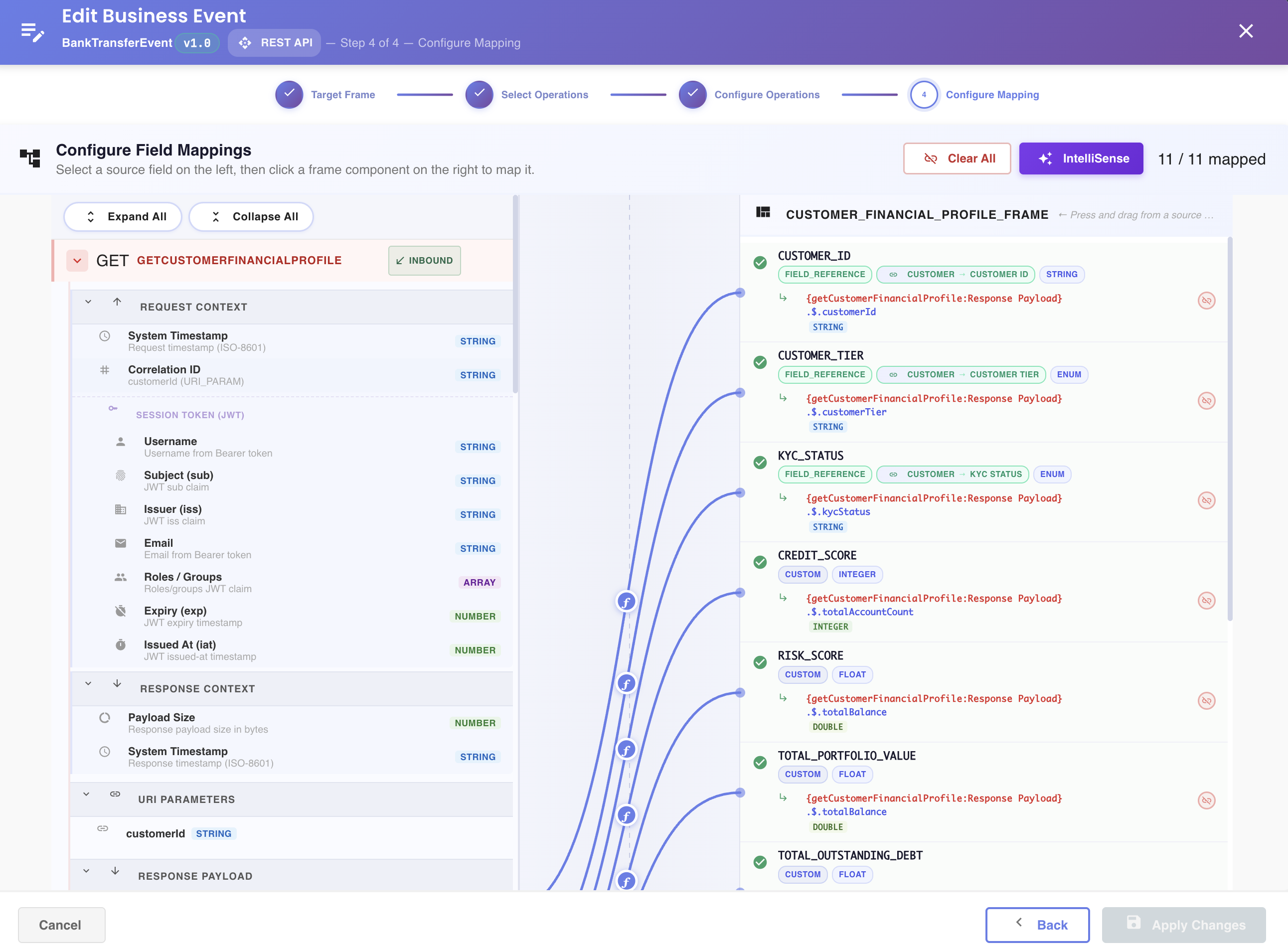

Step 4 — Configure Mapping¶

The same Business Event Mapper described in Configure Mapping — drag and drop source fields onto target components, run IntelliSense, or write BMEL expressions. If you changed the target frame or operations in the earlier steps, this is where you reconcile the mapping to match.

Applying the changes¶

Instead of Create, the last step's button is Apply Changes. It stays disabled until you've actually modified something in the wizard — simply stepping through without changing anything leaves it greyed out, since there'd be nothing to save.

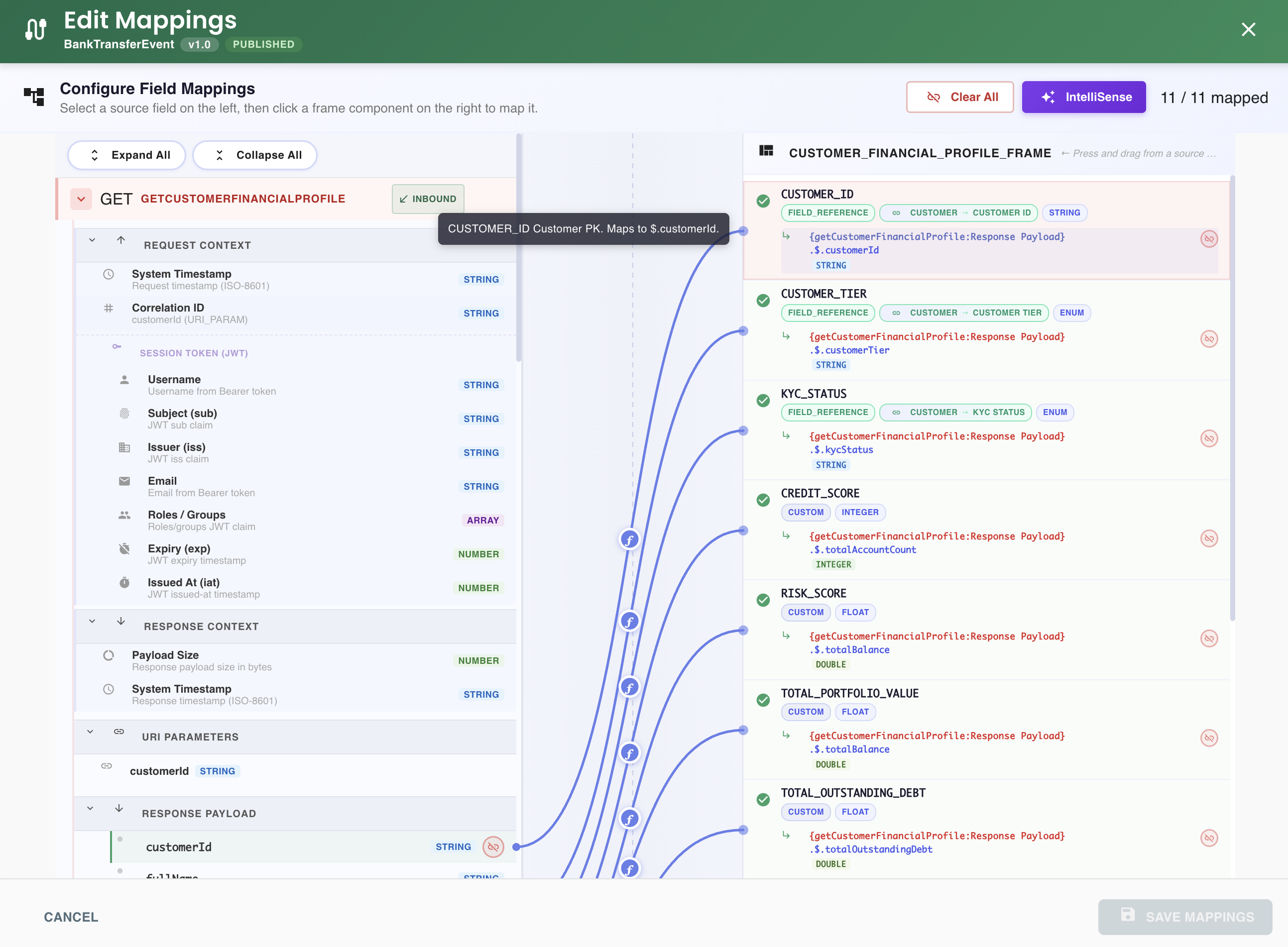

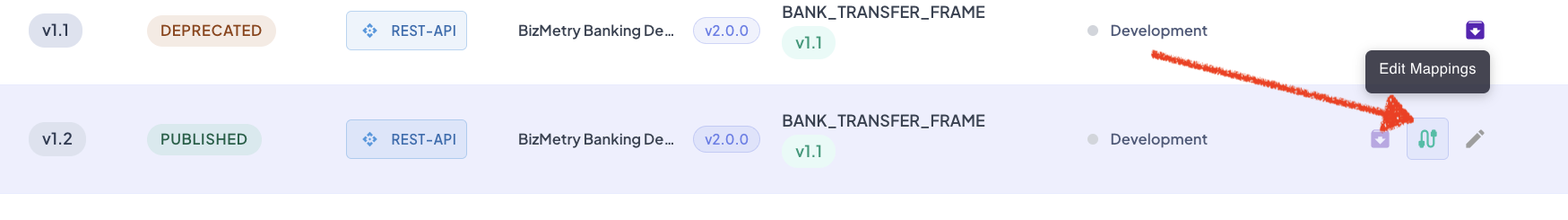

Flow 2 — Edit Mappings: the shortcut¶

Clicking Edit Mappings skips the wizard entirely and opens the Configure Field Mappings canvas directly, in a standalone dialog — no stepper, no other steps. The dialog header shows the event name, version, and current status, and the save action is labeled Save Mappings.

This is the fastest path when only the mapping needs a change: nothing about the target frame, API collection, operations, or their configuration is touched. It's the same drag-and-drop canvas as Step 4 of the Edit wizard / Configure Mapping — drag source fields onto target components, run IntelliSense, or open the BMEL editor for computed values.

Just like Apply Changes in the full wizard, Save Mappings stays disabled until you actually change at least one mapping — opening the dialog and closing it without touching anything leaves nothing to save.

Which versions can be edited¶

A version can be edited — via either Edit or Edit Mappings — in any state except DEPRECATED and RETIRED:

DEPRECATED and RETIRED versions are historical — reactivate a DEPRECATED one via Reinstate instead, since there's no path back from either state through editing.

What happens when you save¶

Saving behaves differently depending on the version's status when you opened it — this applies identically whether you used Edit or Edit Mappings:

%%{init: {"themeVariables": {"fontSize": "18px"}}}%%
flowchart TB
    A["Apply Changes / Save Mappings"] --> B{"Version status?"}
    B -->|"DRAFT, PENDING_REVIEW,\nAPPROVED, or REJECTED"| C["Same version updated in place\nStatus → DRAFT"]
    B -->|"PUBLISHED"| D["New DRAFT version forked\n(number auto-calculated)"]
    D --> E["Original PUBLISHED version\nuntouched — still live"]

Editing a DRAFT, PENDING_REVIEW, APPROVED, or REJECTED version¶

Saving updates that same version, in place — no new version number is created. Regardless of which of these four states it started in, its status always becomes DRAFT afterward, which restarts the review cycle: Submit → Approve/Reject.

Editing a PUBLISHED version¶

A PUBLISHED version is never modified in place — it's actively capturing telemetry and must keep doing so uninterrupted. Instead, saving:

1. Forks a new version — copying the current configuration, operations, and mappings — created in DRAFT status.
2. Auto-calculates its version number based on the scope of what changed (major bump if the target Template version changed, otherwise a minor bump — see Versioning & Fork-on-Bump for the full table).
3. Leaves the original PUBLISHED version untouched, still live and capturing telemetry for every environment scoped to it.

From there, the new DRAFT follows the normal lifecycle — review it, submit it, and publish it when it's ready. Until you do, the PUBLISHED original keeps serving telemetry exactly as before.
